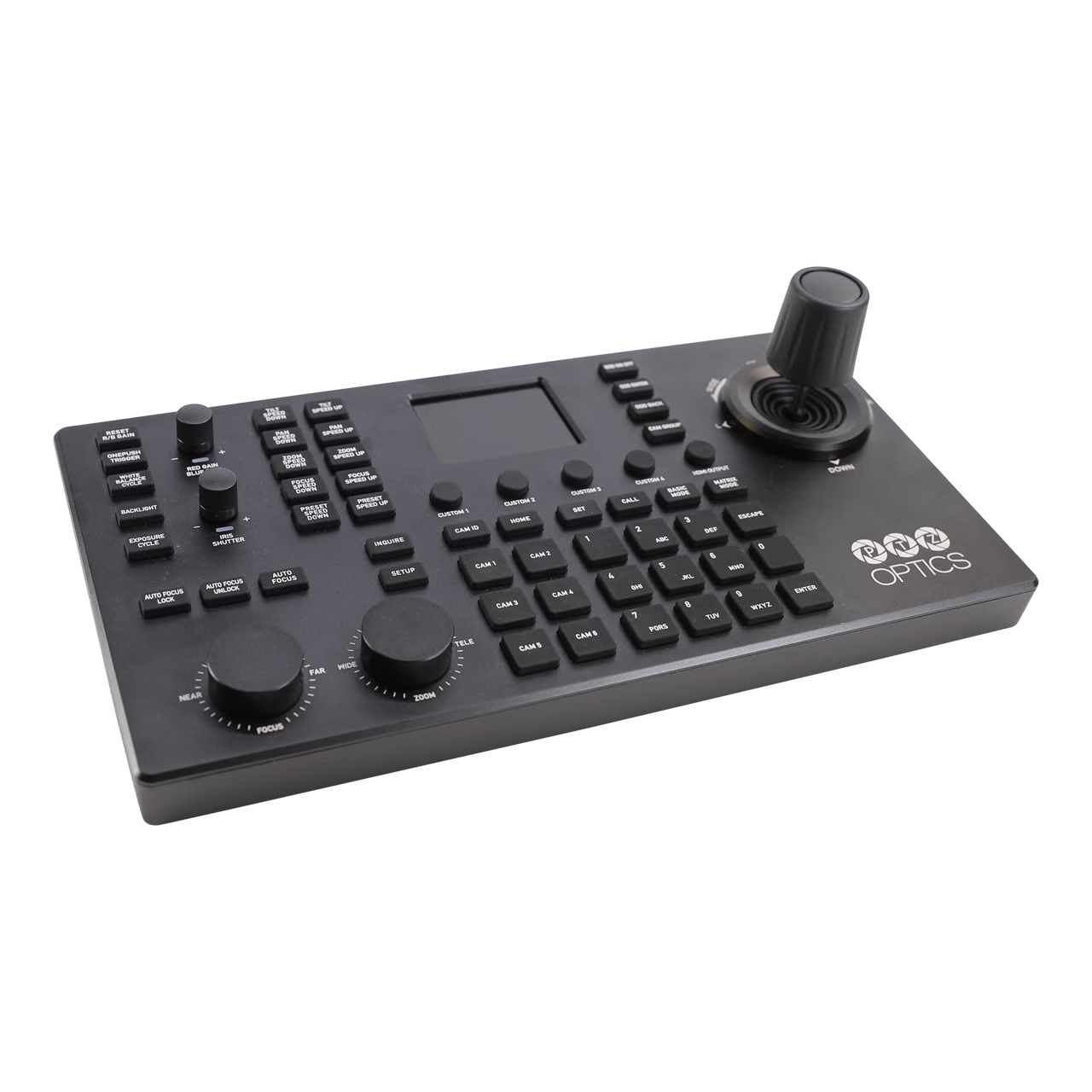

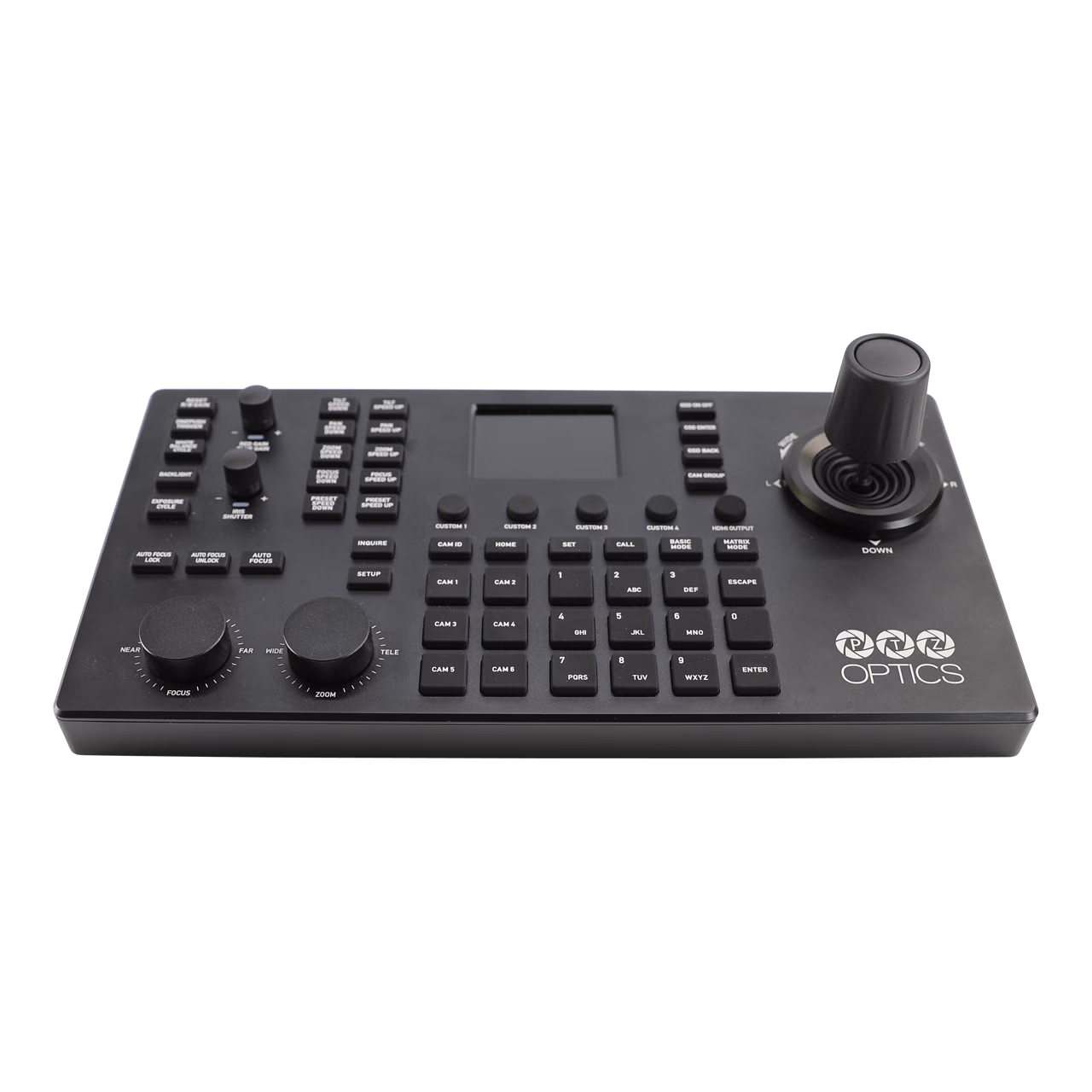

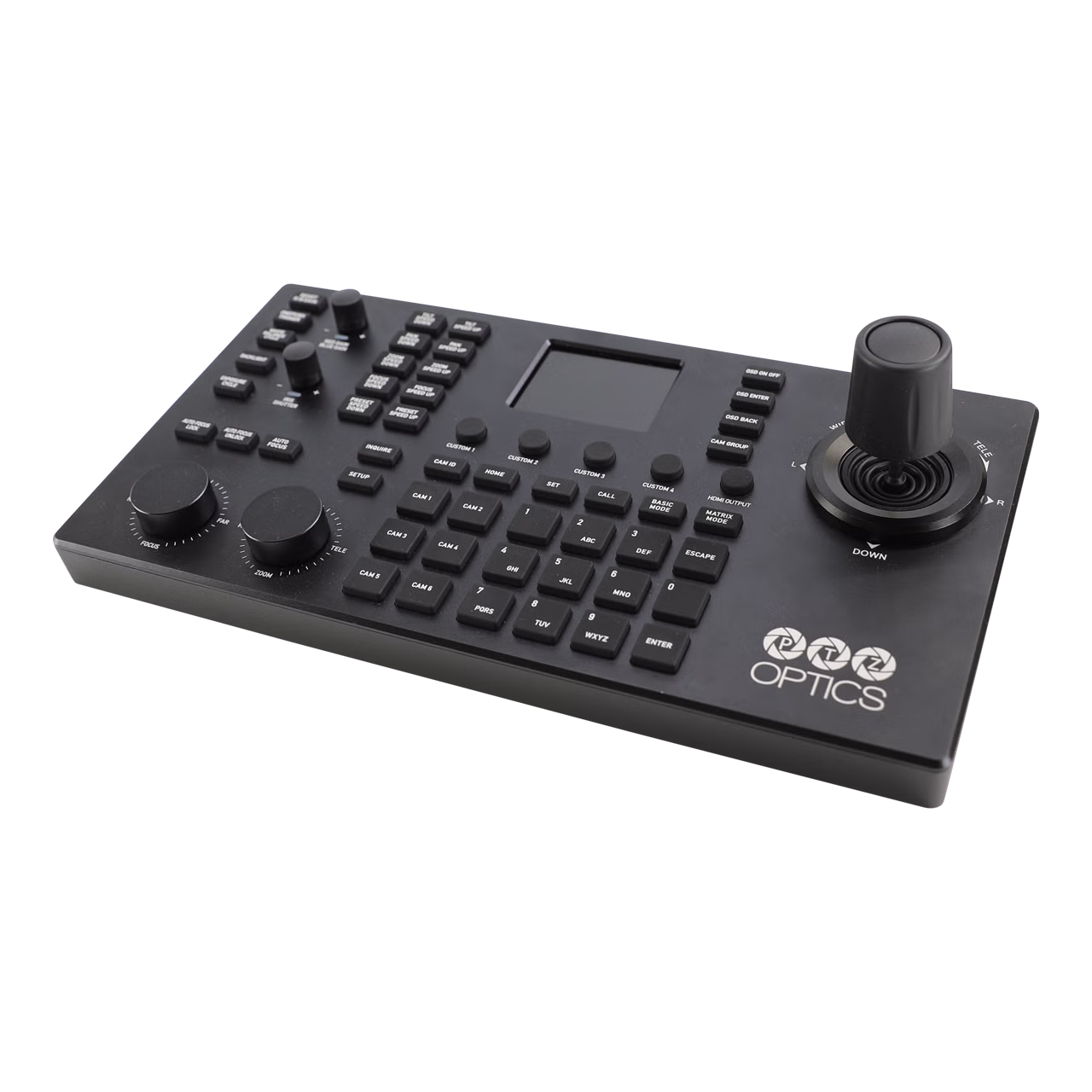

SuperJoy
With an intuitive, tactile interface offering simultaneous IP, NDI® and serial control, the SuperJoy simplifies and streamlines even the most complex production setups. Plus, with three user-centered control modes and hundreds of customizable presets, the SuperJoy offers unparalleled flexibility for teams of all skill levels, from experts to novices.
Streamlined, real-time production with 1080p video preview
Customizable buttons and automatic triggers for seamless workflow integration
Simultaneous network and serial control for cameras, lighting and more
Durable metal housing and rubberized precision controls
Product Overview
The SuperJoy is a comprehensive solution supporting mix-and-match serial and network-based control for PTZ cameras of any generation, with simultaneous PTZ control across IP, NDI® and serial cameras. With a wide range of powerful customizations, from Super Presets to Automatic Trigger commands, the SuperJoy is a controller teams can truly make their own.
Key Features
Simultaneous network and serial control for a range of PTZ cameras and devices from popular brands
Basic, basic plus, and matrix modes for users of all skill levels
Up to 255 PTZ camera presets, 9 quick presets, and 4 super-presets
Large LCD screen with controller status and built-in decoder with HDMI output
Benefits
Endlessly Customizable Control
The SuperJoy offers custom buttons to control lights, screens and more. Super-Preset buttons can be used for synchronized multi-preset commands across up to four camera groups with up to seven cameras each.
An Intuitive, Tactile Experience
Ergonomic, rubberized controls and pressure-sensitive dials for precise, on-the-fly tuning, with no OSD adjustments required. Easily control white balance, red and blue gain, shutter speed and more.
A Controller for Everyone
Multi-brand compatibility, including Sony, BirdDog, NewTek and More. Designed for users of all skill levels with Basic, Basic Plus and Matrix control modes.
Built for Long-Term Value
Ongoing updates and a two-year warranty protect your investment, adding new capabilities over time instead of forcing costly replacements.
Technical Specifications
Video Specifications
Max Cameras
253 channels / cameras Groups 1-4: 7 channels / cameras Group 5: 225 channels / cameras
Recommended Max Distance
Ethernet: 328 feet | 100 Meters RS-232: 50 feet | 15 Meters RS-422: 50 feet | 15 Meters RS-485: 3,937 feet | 1200 Meters
Baud Rate
1200-19200bps
Warranty
2 Years
Physical Specifications
Power
6W (12VDC) / PoE (802.3af)
Connections
RS-232 Control Connection RS-422 / RS-485 Control Connection 10/100M Ethernet / RJ-45 (PoE) Network Port Supports 802.3af PoE power Network: NIC (TCP and UDP) Serial/Analog: RS-232 Full Duplex, RS-485 Semi Duplex, RS422 Full Duplex
Protocols
PTZOptics VISCA and VISCA over IP PELCO-D and PELCO-P via Serial Ports Limited Sony VISCA and VISCA over IP support Limited ONVIF support Limited NDI® support Limited Panasonic Support (HTTP) WebSockets
Colors
Black
Related Products

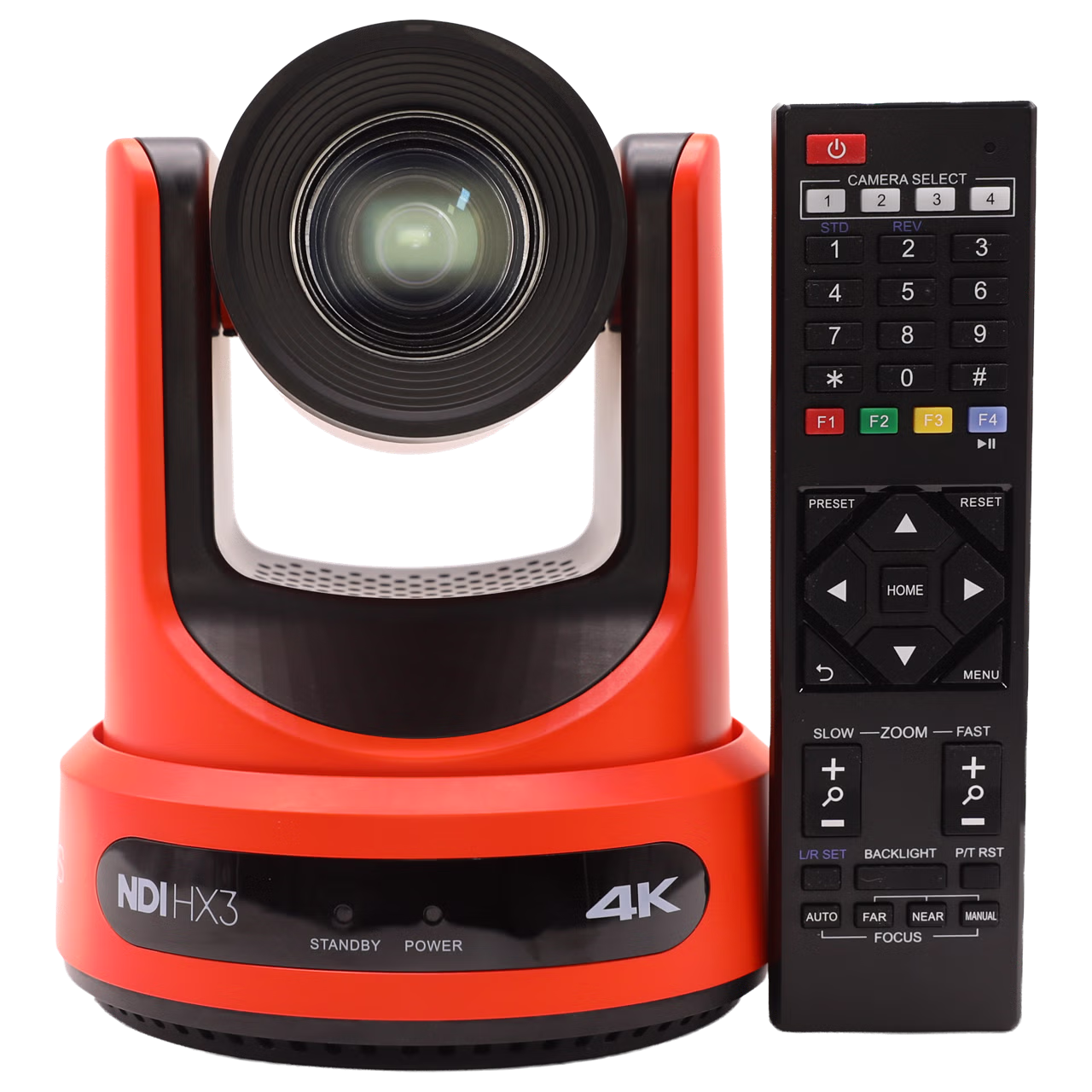

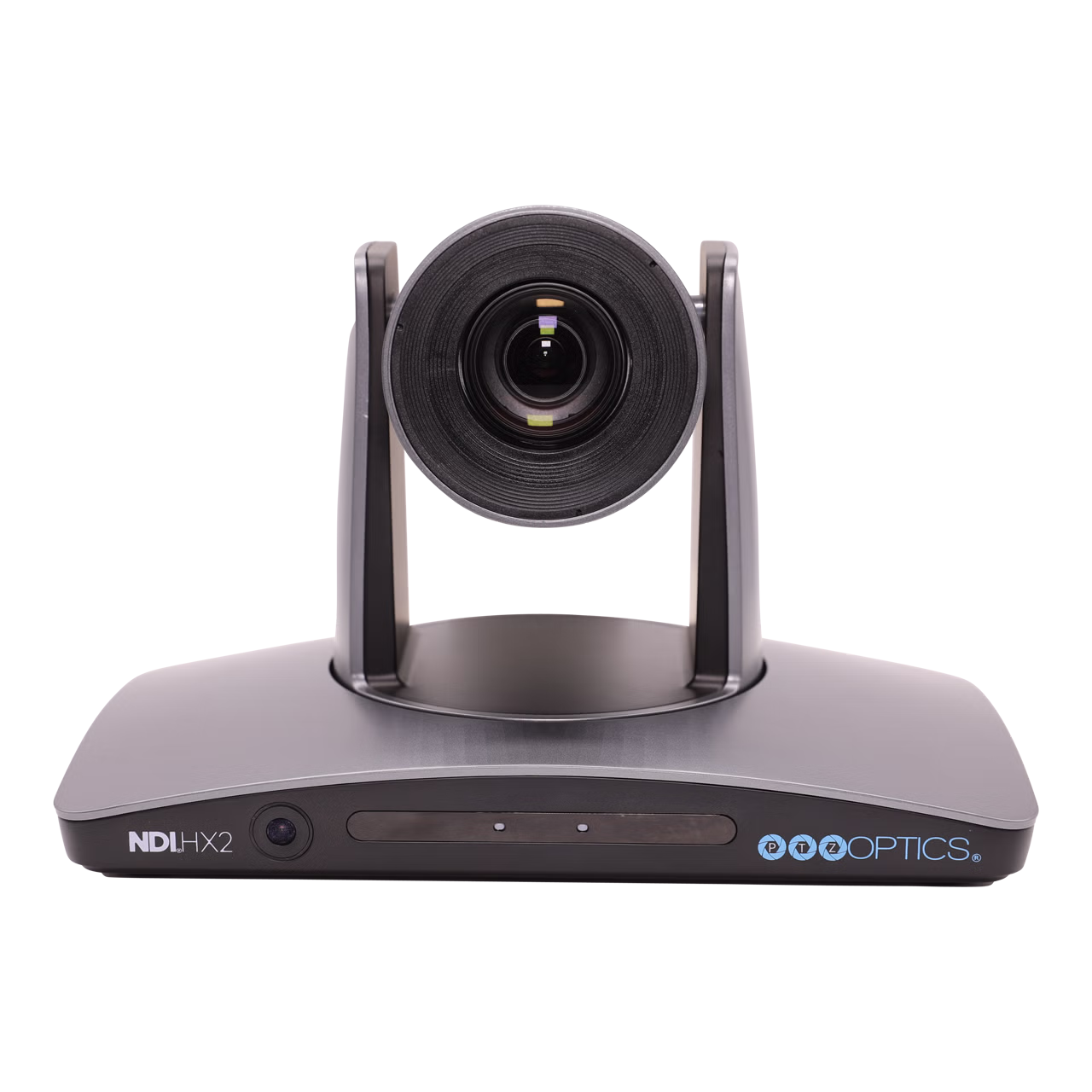

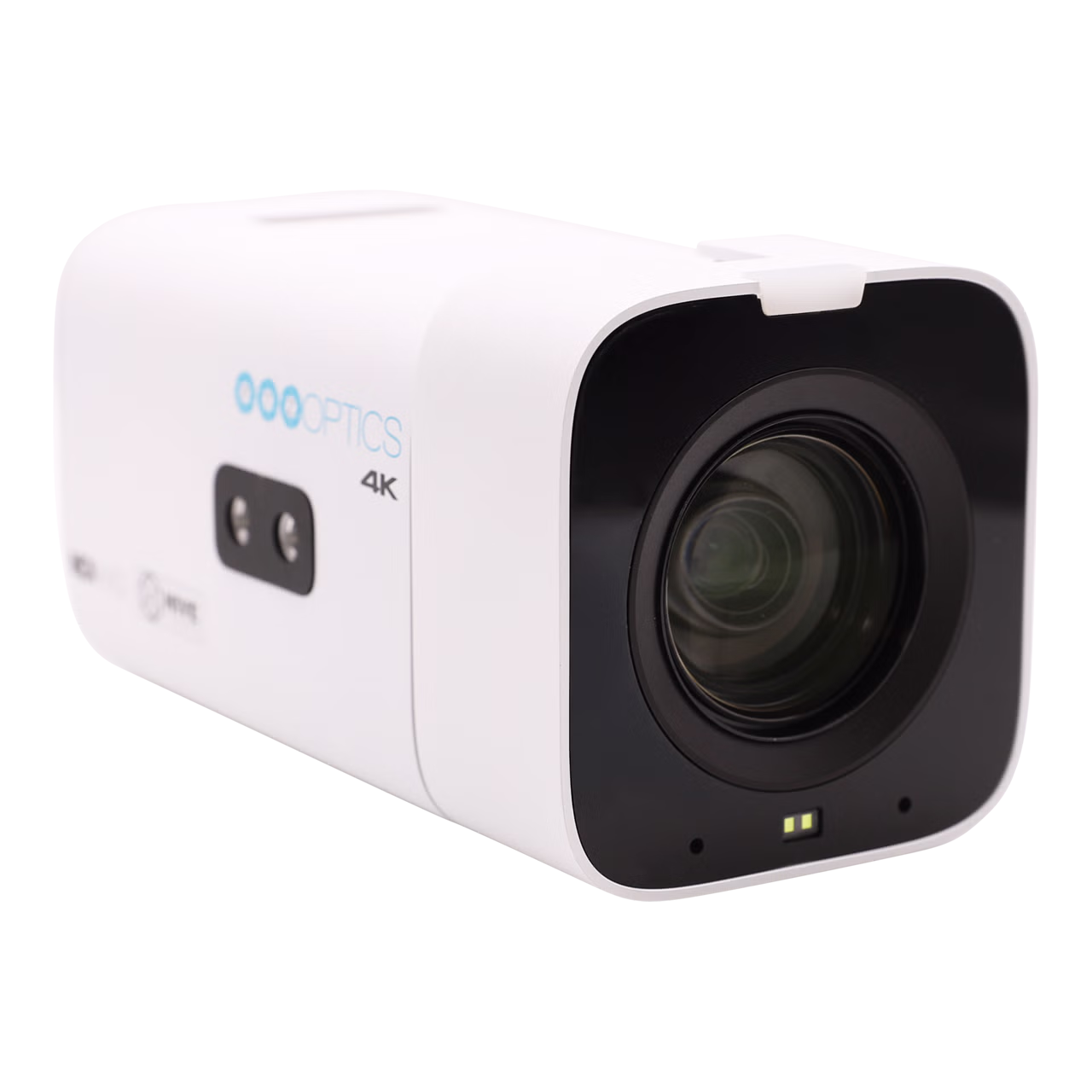

Cameras:

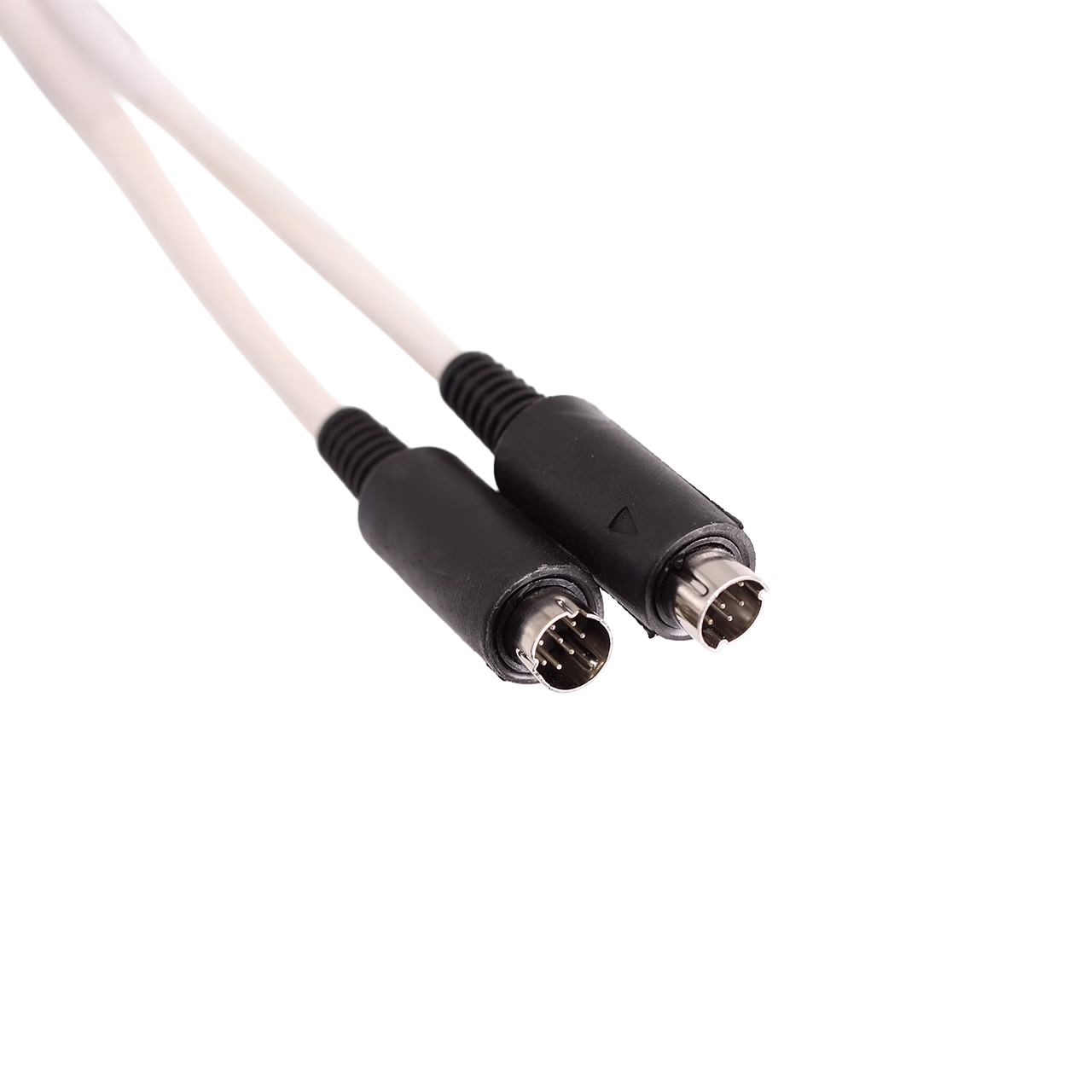

Power, Mounts and Cables:
